Hatch Viewer: Overview
2 views · by Kevin J Bruno · updated 2 hours ago

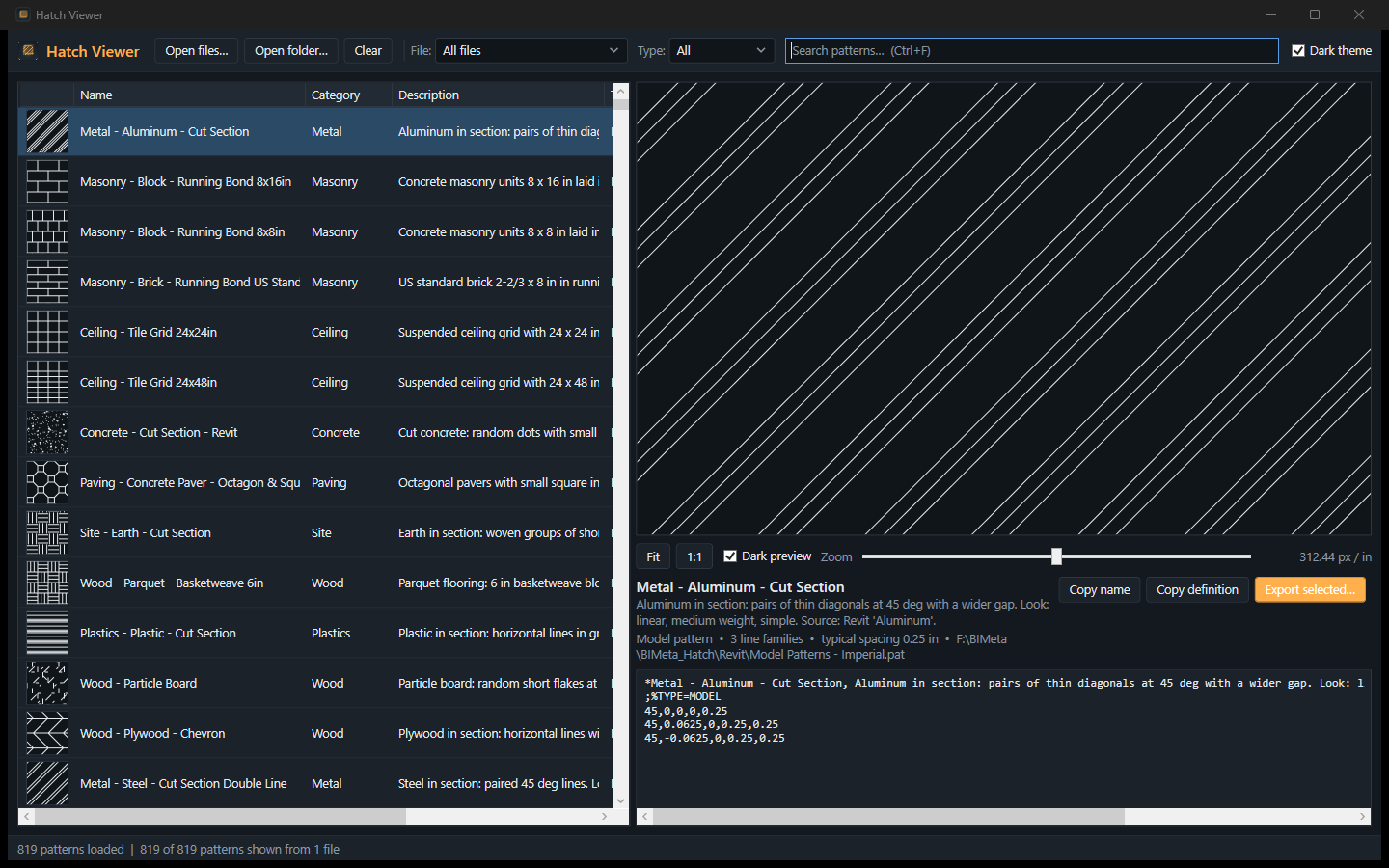

Hatch Viewer lets you browse, search and preview AutoCAD and Revit hatch patterns (.pat). It ships with a curated, Revit-ready BIMeta pattern library — model and drafting patterns in imperial and metric — named “Category - Subject - Variant” so they're easy to find.
What you can do
- Live thumbnails and a large, zoomable preview (Fit, 1:1, Zoom)
- Search with Ctrl+F — several words must all match
- Filter by file and type (model/drafting); sortable columns
- Copy name and Copy definition
- Export selected… writes chosen patterns to a new .pat file
- Dark theme and dark preview
- Optional “Open with” association for .pat files
System requirements
- Windows 10/11, 64-bit
